Quality Aluminum Ingots Characteristics
Quality Aluminum Ingots is a popular engineering material of choice for many applications because of the following reasons:
- Light
- Strong
- High Strength-to-Weight Ratio
- Resilient
- Ductile at Low Temperatures
- Corrosion Resistant
- Non-Toxic
- Heat Conducting
- Reflective
- Electrically Conducting
- Non-Magnetic
- Non-Sparking
- Non-Combustible
Notes:
1. Single figures in this table are the maximum value
2. To determine whether a composition found by analysis conforms to the requirements of the specification, the analytical figure should be rounded off to the nearest unit in the last right-hand place of figures used in the corresponding limits in the table (according to BS 1957)
3. In cases where alloys are required in the modified condition, the level of any modifying element present is not limited by the specified maximum value for other elements
# 0.05% minimum if Titanium alone is used for grain refining
* LM28 and LM29 are also subject to metallographic structure requirements
+ LM31 castings in the M condition have to be naturally aged for 3 weeks before use or before determination of mechanical properties
Prime Quality 99.9% Aluminum Alloy Ingots
Notes:
1. Designations shall be as given in IS 6051
2. Chromium content in this alloy shall not exceed 2 percent
3. If present, titanium content shall be less than 0.05 percent
4. Other impurities do not preclude the possible presence of other unnamed elements. However analysis shall regularly be made only for the impurities listed in the table. The major element (Aluminium) shall be determined by difference between the sum of total elements analysed (& permitted within maximum limits) and 100 percent. By agreement between manufacturer and purchaser, analysis may be required and limits established for elements not specified
‘*’ If required by the purchaser only and in such case, the limits shall be as per the agreement between purchaser and the supplier and the maximum limits shall be as specified in the table
‘**’ Sum of all other elements each having value of 0.010% or more.’
Premium Quality 6063 Aluminum Ingot for Industrial Applications
Product Description::

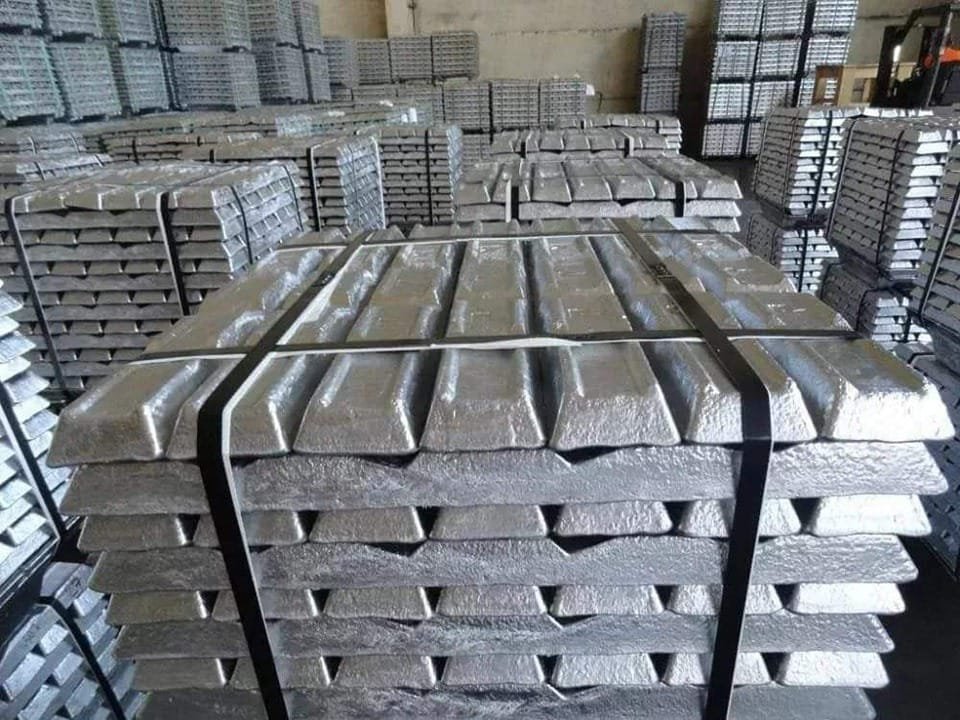

Aluminum ingots are block or ingot raw materials that are cast after smelting and refining aluminum metal.
Chemical composition: mainly aluminum (Al) (purity ≥ 99.5%), and silicon (Si), magnesium (Mg), copper (Cu) and other elements can be added to form aluminum alloys.
Small ingot/T-shaped ingot:15-25kg,length 400-600mm* width 80-150mm*height 40-100mm.
Large ingot (plate ingot/square ingot):500-1000kg, length 1000-2000mm* width 200-500mm* height 100-300mm.
High-purity aluminum ingots: ≥99.99%, electronic components, optical coating materials.
Industrial pure aluminum ingots: 99.5%-99.9%, building profiles, packaging foil, cable conductors.
Automobile manufacturing:ADC12, A356, 6061.
Construction engineering:6061, 6063.
Electronic and electrical appliances:High purity aluminum ingot (99.99%)
Packaging industry:1050, 1060.
Can be specially customized: aluminum ingots and special-shaped ingots for remelting: customized according to rolling or extrusion requirements,such as round ingots, flat ingots.
| Chemical Composition | AL99.5-99.7 |
| Grade | Pure Aluminum |
| Model Number | 1000,2000,3000,5000,6000,7000,8000 Series |
| Color | Silvery White |
| Length | 400-2000mm or Customize |
| Width | 80-500mm or Customize |
| Height | 40-300 or Customize |
| Application | Steelmaking Industry Metallurgy |
| PRICE TERM | EXW FOB CIF CFR |
| Shipment Time | Within 7-15 Workdays After Receiving Deposit |
General Uses Of Aluminum Alloys
- LM 0 Sand Castings for Electrical, Chemical, and Food Applications
- LM 2 Widely used Alloy for all Types of Die Castings
- LM 4 The most versatile Alloy with very good casting characteristics. UTS can be greatly increased after heat treatment
- LM 5 Castings required maximum resistance to corrosion such as marine components can be cast in such and chill
- LM 6 Very suitable for large intricate thin-walled castings in all types of moulds
- LM 9 Common to L.M.6 characteristics but higher U.T.S. after heat treatment
- LM 10 Suitable for sand and chill castings with high strength and shock resistance requires special foundry technique; heat treated
- LM 11 Suitable for die and centrifugal castings
- LM 12 Mainly used where a very good machined surface finished and hardness is required
- LM 13 Used in piston castings
- LM 16 Castings requiring high mechanical properties can be cast in sand or chill process
- LM 18 High resistance to corrosion with good foundry characteristics
- LM 22 Used for chill castings requiring good foundry characteristics and ductility. Requires heat treatment
- LM 24 One of the two most widely used alloys for all types of castings
- LM 25 Suitable where good resistance to corrosion combined with high strength is required
- LM 28 Piston alloy with a lower coefficient of expansion than LM 13
- LM 29 As LM 28 but the lower coefficient of expansion
- LM 30 For unlined die-cast cylinder block with low expansion and excellent wear resistance
